$316.25 inc GST

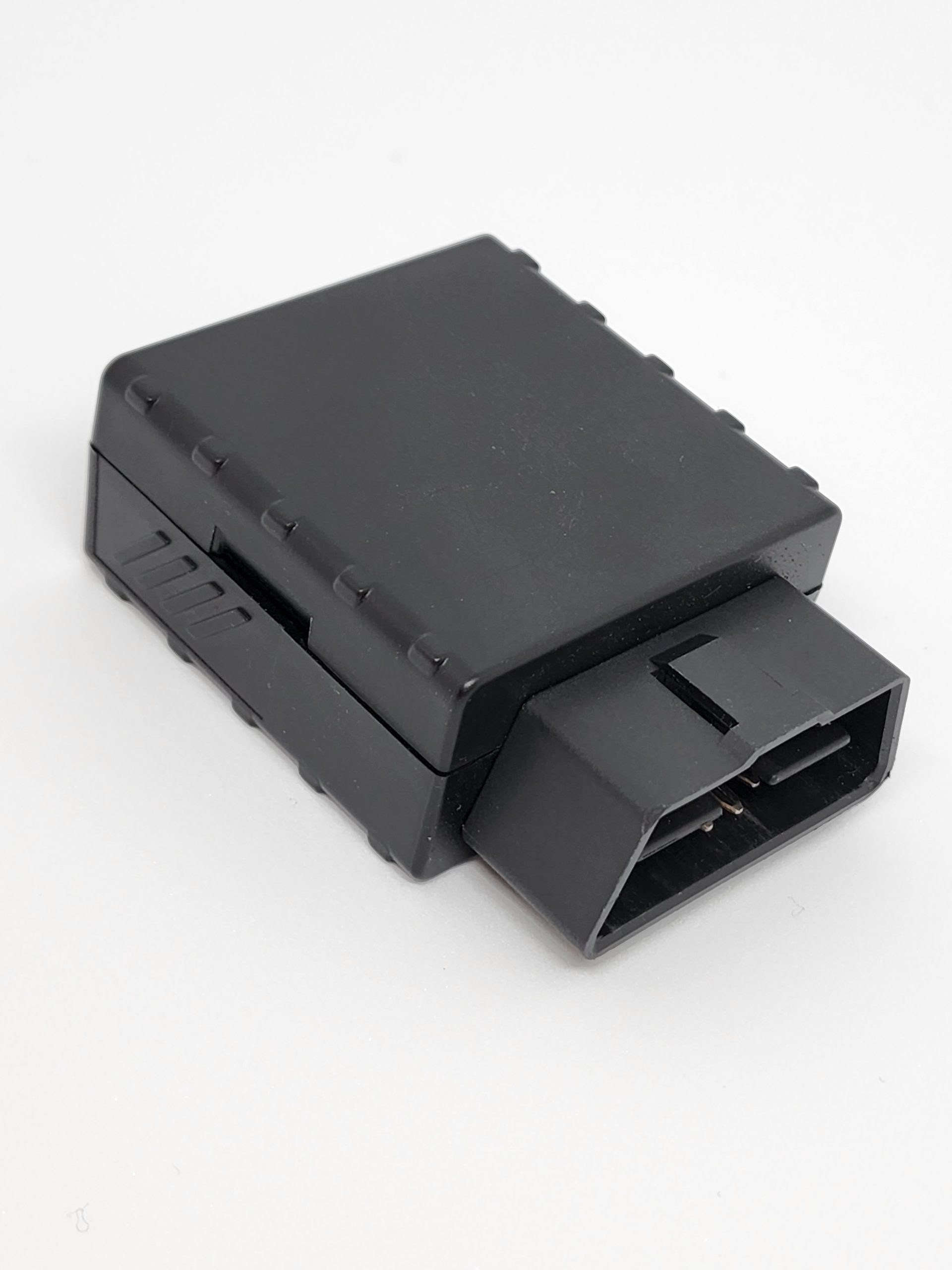

Waka Data WD001 Advanced OBDII Plug and Track real-time tracking terminal LTE/GNSS/BLE

SKU: WD001 Category:


Waka Data WD001 represents the next step in communication technology – this is the first Plug and Track LTE OBD device with GNSS and Bluetooth connectivity. The WD001 can read OBDII parameters, features effortless installation, and can access detailed accelerometer data, making this unit a very quick and easy solution. This is the perfect tracker for a wide range of applications – fleet management of light commercial vehicles, car rental & leasing, driver log-book, and so on. The WD001 also supports various Bluetooth Low Energy sensors, and beacons.


  • Reliable 4G connection with fallback to 3G or 2G network
  • Allows device to work without an external power source
  • Bluetooth for external devices and Low Energy sensors
  • Allows reading CAN bus data from vehicle ECU
  • Crash detection functionality working according to accelerometer data


Product code WD001
Receiver Tracking: 33/99 acquisition channels
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular Technology LTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE
2G bands GSM: B3/B8
3G bands WCDMA: B1/B8
4G bands LTE FDD: B1/B3/B7/B8/B20/B28
Data support SMS (text/data)
Input voltage range 10 – 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Bluetooth Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
OBD Interface Data K-Line, CAN bus Data
Data Reading Up to 32 vehicle onboard parameters, supported OBD protocols
Dimensions 67,2 x 49,6 x 25 mm (L x W x H)
Weight 65 g
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature 0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
Interface Connection ODBII Socket
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
Memory 128MB internal flash memory
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, , Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring ODBII
Ignition detection Accelerometer, External Power Voltage, Engine RPM
