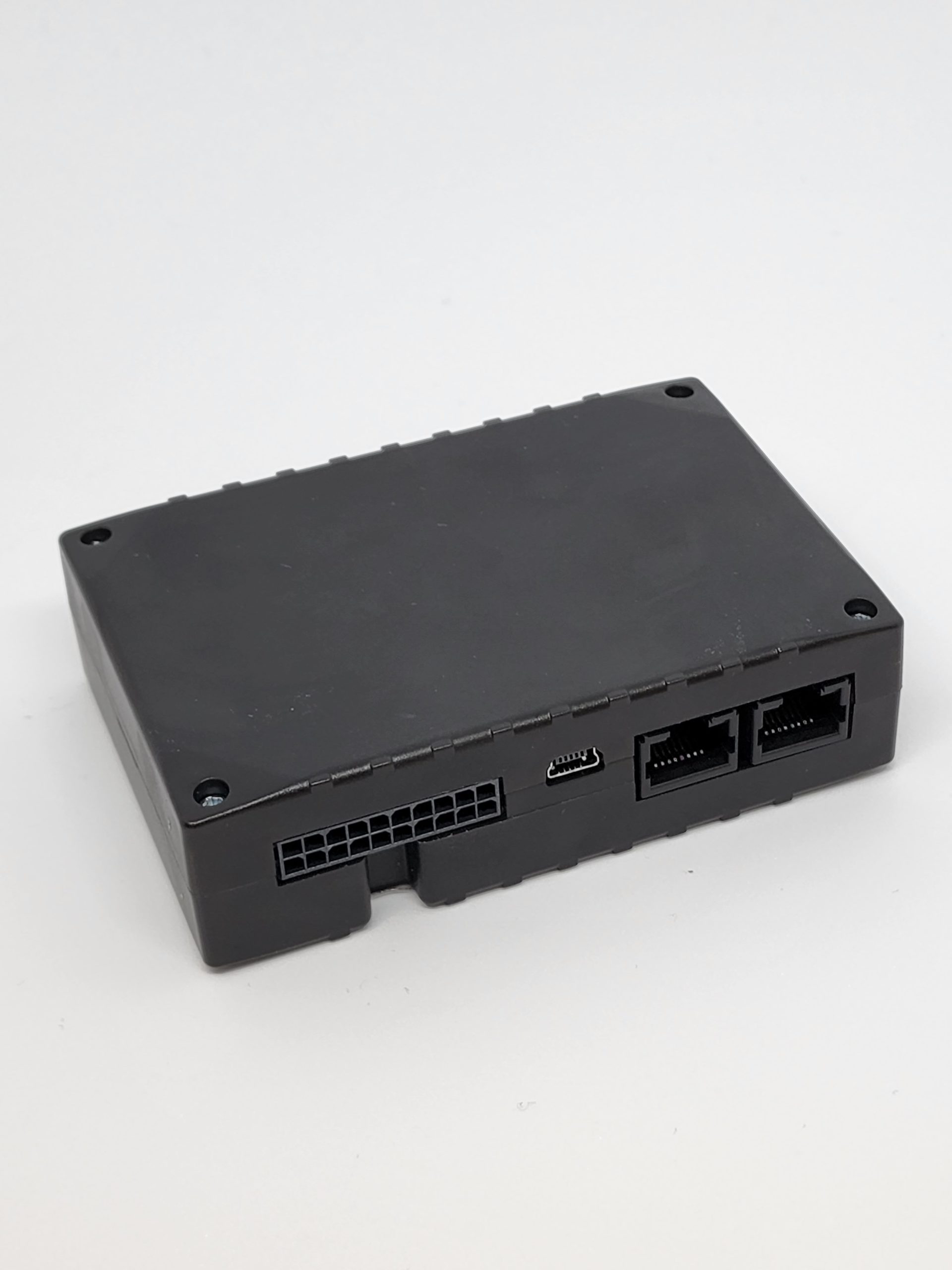

Waka Data WD640 GNSS/LTE/3G/GSM tracking device designed for vehicles and specialised transport applications

$632.50 inc GST

Waka Data WD640 Leading GNSS/LTE/3G/GSM Terminal designed for advanced vehicle tracking applications

Category:

Description

The Waka Data WD640 is a professional series vehicles and specialized transport tracking device with 4G (LTE Cat 1) network coverage including 3G (UMTS), 2G (GSM) fallback compatibility. The WD640 is equipped with GNSS and LTE modules, external GNSS and LTE antennas. This device will maximize your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM.Terminal is suitable for applications like international logistics, refrigerated transport, agriculture, construction & mining, security & emergency services and even more.

Features
  • Reliable 4G connection with fallback to 3G and 2G network
  • Accurate fuel level and temperature monitoring via LLS sensors
  • Dual SIM – significantly reduce roaming costs
  • Remote tachograph data download
  • RS232/RS485 serial communication interfaces
  • CAN data reading from vehicles and specialized transport

Specifications

Product code WD640
Technology LTE(CaT1)/3G(UMTS/HSPA)/2G(GSM/GPRS)/GNSS
GNSS GPS, GLONASS, GALILEO, QZSS
Receiver Tracking: 33/99 acquisition channels
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
Cellular Technology LTE Cat 1, UMTS, GSM
2G bands GSM: B3/B8
3G bands WCDMA: B1/B8
4G bands LTE FDD: B1/B3/B7/B8/B20/B28
Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), UMTS: WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL), GSM: GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Input voltage range 10 – 30 V DC with overvoltage protection
Internal Back-up battery 550 mAh Ni-Mh, 8.4 V battery
Supported peripherals Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD , Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary
Digital Inputs 4
Digital Outputs 4
Analog Inputs 4
1-Wire 1
RS232 2
RS485 1
CAN J1939 2
J1708 1
K-line 1
GNSS antenna External High Gain
Cellular antenna External LTE CAT 1 High Gain
USB 2.0 Mini-USB
LED indication 2 status LED lights
SIM 2x SIM Card (Dual-SIM)
Memory 2MB internal flash memory and external Micro SD card up to 32GB
Dimensions 104.1 x 76.8 x 31.5 mm (L x W x H)
Weight 197 g
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months
Sensors Accelerometer
Scenarios Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification, Auto Geofence, Manual Geofence, Trip detection, Odometer, Fuel counter, GNSS Unplug Detection, DDD download and Tacho online data, Offline tracking
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, CAN FMS (J1939, J1708), Ultrasonic level sensor
Ignition detection Digital Input, Accelerometer, External Power Voltage
